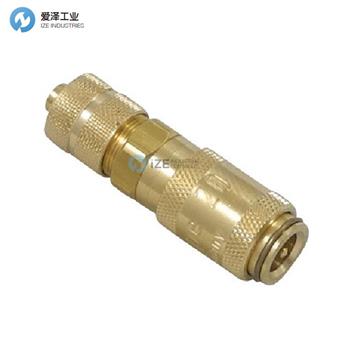

Coupling Half:

Coupler

Hose I.D.:

4x6 mm

Connection Size:

4x6 mm

Connection Thread Size:

n/a

Brand:

Parker, Rectus

Division:

Low Pressure Connectors Europe Division

External Hex (mm):

9

Industry:

General Industrial, Healthcare & Life Sciences

Application:

Food & Beverages, Industrial Machinery, Medical, Pharma

Technology:

Fluid & Gas Handling

Product Type:

Pneumatic Quick Couplings

Product Style:

Quick-Connect

Product Series:

Series 20

Maximum Operating Pressure:

up to 35 bar, up to 507 psi

Version:

Double Shut-Off

Connection Type:

Tube with Hose Nut, without Spring Guard

Connection Size:

4x6 mm

Maximum Operating Temperature:

100 °C, 212 °F

Minimum Operating Temperature:

-20 °C, -4 °F

For Fluid Type:

Water, Inert Gas, Chemical Fluids, Gases

Flow Rate:

1.2 L/min (water)

Body Material:

Brass

Seal Material:

NBR

Sleeve Material:

Brass

Interchange Type:

European Profile

Coupling Half:

Coupler

Compatible Fitting:

Series 20 Plug

Valve Type:

Standard Valve

Function:

Double Shut-Off

Operation Type:

Sleeve

Plating Type:

Without Surface Treatment

Diameter:

2.7 mm (nominal)

Hex Size:

9 mm (external)

Specifications Met:

ATEX, RoHS

Weight:

0.011 kg

Length:

34 mm

Quantity per Box:

5

Region of Origin:

Germany

Materials of Construction:

Brass

Shape:

Straight

Valve Included:

Yes

Type:

Coupling

Connection Type:

With Plastic Hose Connection
