REXROTH OIL CONTROL閥VMI-8A-2A-09-NC，OD.55-X-17.37-Z系列技術參數
General | |
Weight kg (lbs) | 0.28 (0.62) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm | 70 (19) |
Max. internal leakage drops/min. | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque m (ft-lbs) | 54-66 (40-49) |
Recommended degree of fluid | Nominal value max. 25μm (NAS 8) |
contamination | ISO 4406 19/17/14 |
Special cavity | 017-E see RE 18325-75 |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit - version 05 | RG17E201052010 |
Seal kit - version 31 | RG17E201053010 |
Other technical data | See data sheet RE 18350-50 |
Only for cam-operated valves: | |
Operating stroke mm (in) | 3 (0.12) |
Max. overstroke mm (in) | 0.5 (0.02) |
IMPORTANT: When valve is not operated, flow from1 to 2 is not recommended due to high ope- ning pressure. | |

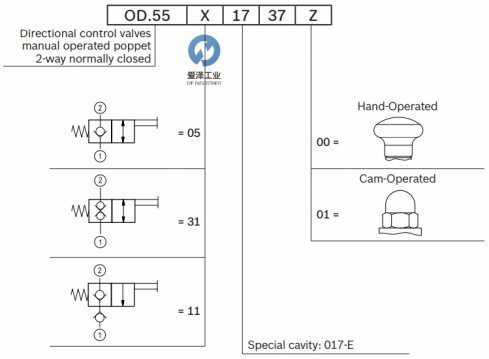

REXROTH OIL CONTROL閥VMI-8A-2A-09-NC，OD.55-X-17.37-Z系列選型參考

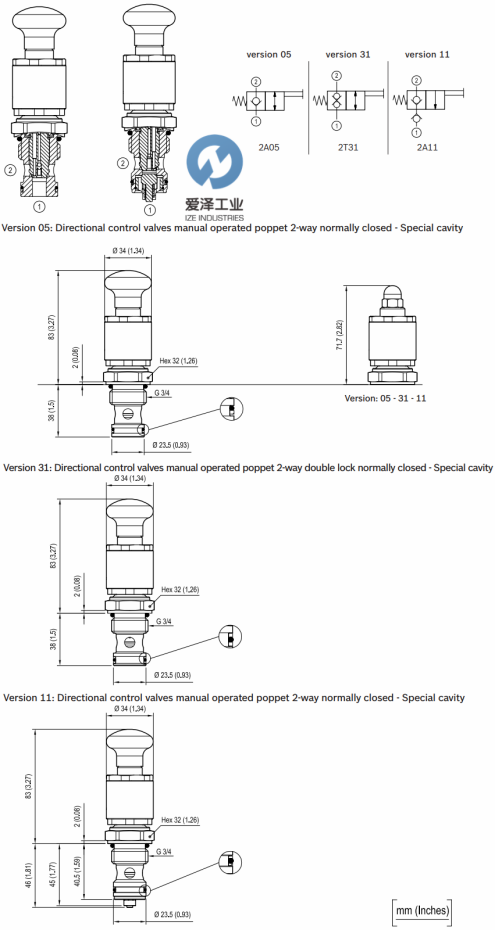

REXROTH OIL CONTROL閥VMI-8A-2A-09-NC，OD.55-X-17.37-Z系列技術尺寸圖

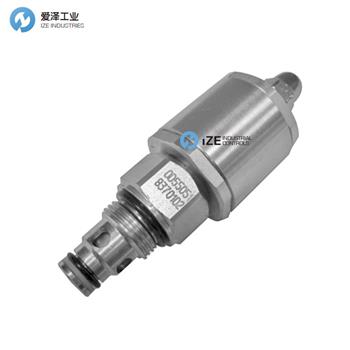

REXROTH OIL CONTROL閥VMI-8A-2A-09-NC OD.55-X-17.37-Z OD550517370000 R934001424
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥OD550517370000 R934001424
REXROTH OIL CONTROL閥OD550517370100 R934001425
REXROTH OIL CONTROL閥OD553117370000 R934001437
REXROTH OIL CONTROL閥OD553117370100 R934001438
REXROTH OIL CONTROL閥OD551117370000 R934003846
REXROTH OIL CONTROL閥OD551117370100 R934003671
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD550517370000 R934001424的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥OD550517370000 R934001424更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
REXROTH OIL CONTROL閥OD550517370000 R934001424 VMI-8A-2A-09-NC OD.55-X-17.37-Z系列技術參數介紹
